How to Configure Color Management Profiles in Windows 11

Richard
Written by
Richard
Updated 10 min read
How to configure color management profiles in Windows 11 display settings
How to configure color management profiles in Windows 11 display settings
Before you start
  • 38 steps
  • Needs administrator rights

Customizing color profiles for displays in Windows 11 means telling Windows which color file to use for each monitor. The work happens in the legacy Color Management applet, a classic-style window that loads and manages ICC and ICM profiles. A color profile is a small file that describes how one particular display renders color.

The Settings app does not offer these deeper color management settings, so you load and manage profiles by hand. This guide covers opening the tool, adding and choosing a color profile, the advanced settings, fixing profiles that reset, and the built-in calibration wizard. Accurate color matters most for photo editing and video work.

The steps are the same on Home and Pro editions of a currently supported Windows 11 version, such as 25H2 or 26H2. Turning automatic color handling on or off is a separate task with its own guide, “How to Turn Auto Color Management on or off in Windows 11”.

⚡ Quick Answer

To customise colour profiles for displays in Windows 11, open the Color Management applet by typing Color Management in the Start menu search. Select your monitor from the Device drop-down, tick Use my settings for this device, then click Add to attach an ICC or ICM profile file. Settings does not offer these options.

Advertisement

Open Color Management

The Windows 11 color management tool opens from the Start menu. From there you can assign ICC profiles, change rendering intents, and manage default system color behavior. It is a classic Control Panel-style window, so it looks different from the rest of Windows 11. That is normal.

These steps open the Color Management window and prepare it so you can customize color profiles for your displays.

Advertisement
  1. Open the Start menu. Then move on to the search box by typing the name of the tool in the next step.

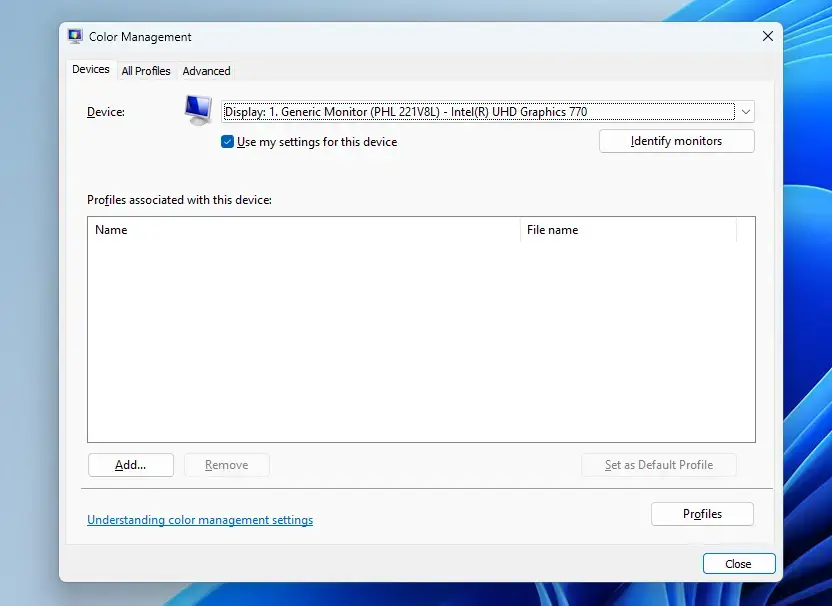

  2. Type Color Management and press Enter. The Color Management window opens on the Devices tab.
  3. Click Yes on the administrator prompt if one appears. On a standard account, Windows asks for an administrator’s password instead, so enter it when prompted.
  4. Select your monitor from the Device drop-down menu. If several displays are attached, the list holds one entry for each screen.
  5. Click Identify monitors if you are not sure which screen is which. Windows flags each display so you can match it to its entry in the list.
  6. Tick the Use my settings for this device box. This lets your custom configuration override the default Windows color setup. While the box is unticked, the profile buttons below it stay greyed out, so tick it before you add or change anything.

That’s it. The Color Management window is open, the right monitor is selected, and your own settings are switched on for that display.

Nothing changes on screen until you add or select a profile, so you can close the window at this point without any effect.

Add a Color Profile

Adding a color profile means putting a manufacturer file or calibration result into the system’s profile list so Windows can apply it to your display. Typical sources are a profile downloaded from your monitor maker or one saved by a calibration tool. Each profile applies only to the device selected in the Device list, so pick the right monitor first.

Advertisement

These steps show how to configure a Windows 11 color profile by adding an ICC or ICM file to your display.

  1. Open Color Management from the Start menu. The window opens on the Devices tab.
  2. Select your display from the Device drop-down menu. The profiles list below it changes to show that monitor’s profiles.
  3. Tick Use my settings for this device if it is not already ticked. Without it, the Add button stays greyed out.

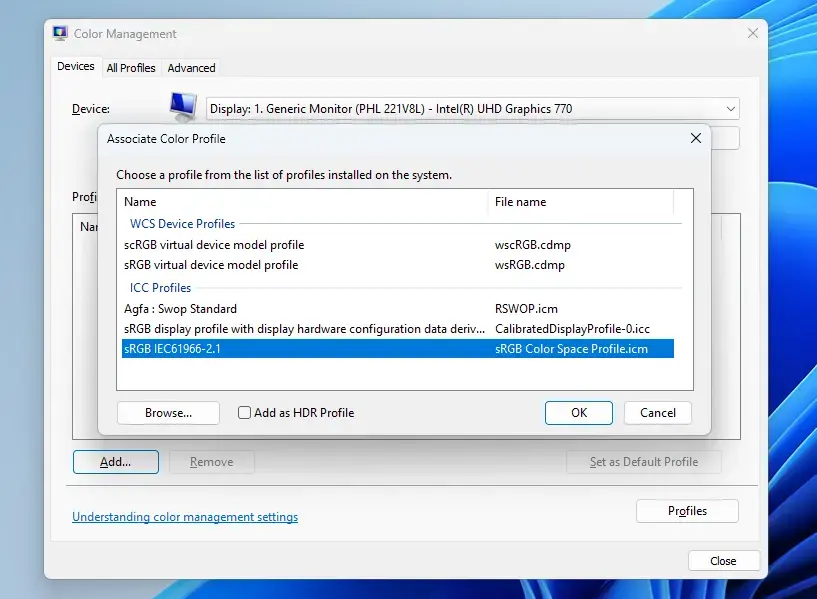

  4. Click the Add button beneath the profiles list. The Associate Color Profile window opens and lists the profiles already installed on the PC.
  5. Select your profile in the list and click OK if it is there. You return to the main window, and the profile now appears for that display. In that case, skip the next two steps.
  6. Click Browse if your profile is not listed. A file window opens so you can find the downloaded ICC or ICM file on your local drive.
  7. Select the profile file and click Add. The profile is imported, and you return to the main Color Management window, where it now appears in the list for that display.

You should now have the new profile associated with your chosen display. It is not active until you make it the default, which the next section covers.

To undo this step, select the profile in the list and click Remove. That only removes the association with the display and does not delete the file.

Advertisement

Set a Default Profile

A default profile tells Windows which color file to use for the selected display. If you have associated several profiles, only the one marked as default is applied.

These steps set the color profile Windows 11 uses on that screen.

  1. Open Color Management and select your display from the Device drop-down menu. Make sure the monitor is the one you want to change.
  2. Click the profile you want in the list of associated profiles. The row is highlighted.
  3. Click Set as Default Profile on the right side of the window. If the button is greyed out, you may have the wrong monitor selected, or Use my settings for this device may be unchecked.
  4. Check for “(default)” next to your chosen profile name. This confirms Windows will use it.
  5. Click Close to leave the window. The new color mapping applies to your display immediately, and you do not need to restart. The screen may flicker or shift tone for a moment.

That’s it. Your chosen profile is now the default for that display, and Windows applies it right away.

Advertisement

To go back, select your previous profile and click Set as Default Profile again.

Configure Advanced Color Settings

⚠️WarningThe advanced settings control system-wide rendering defaults, device profiling conditions, and display calibration behavior. They matter most for apps that are not color-aware, since those apps rely on what Windows sets. Change these only if you know why you need to. The defaults suit most people.

These steps change the color management settings that apply across the whole system.

  1. Open Color Management from the Start menu. The window opens on the Devices tab.
  2. Click the Advanced tab at the top of the window. The device profile and gamut settings appear.
  3. Pick your preferred rendering intent under WCS Gamut mapping. Rendering intent decides how colors outside your monitor’s range are handled, and this setting covers gamut clipping adjustments.
  4. Click Change system defaults to set color options for all user accounts. This needs administrator privileges, so approve the prompt if one appears. The system defaults window opens.
  5. Move through the sub-tabs in the system defaults window. Adjust device profiles and calibration settings there. Anything you set here affects every user who signs in to the PC.
  6. Click Close to apply your changes and exit the utility.
Advertisement

You should now have your system-wide color defaults set. If a change gives odd results, reopen the same tabs and set the option back to what it was.

Troubleshooting Missing Profiles or Display Shifts

Sometimes Windows reverts your custom color settings after an operating system update, a driver reinstall, or waking from sleep. The usual causes are a scheduled calibration task that has been disabled or is not running, or a conflict with a third-party calibration tool. Check both.

These steps look at the scheduled task first, then at the calibration setting, so your color profile stops resetting.

  1. Open the Start menu and type Task Scheduler. Press Enter, and Task Scheduler opens.
  2. Go to Task Scheduler Library Microsoft Windows WindowsColorSystem. Expand the folder tree in the left pane to get there. The tasks in that folder appear in the middle pane.
  3. Check the Status and Last Run Result columns. You are looking for automatic calibration tasks that are disabled or fail when you sign in.
  4. Right-click any disabled task and choose Enable. The status changes to Ready.
  5. Open Color Management, click the Advanced tab, and click Change system defaults. The system defaults window opens.
  6. Click the Advanced tab inside the system defaults window. This tab holds the calibration option.
  7. Uncheck Use Windows display calibration if a third-party tool manages your loading curves. Loading curves are the color corrections a calibration tool applies to your display. Unchecking the box stops the two from fighting over the same settings. If you do not use such a tool, leave it checked.
Advertisement

That’s it. The calibration task is running again, and Windows and any third-party tool no longer compete over your color settings.

If the problem returns after an update, open Color Management and confirm your profile is still marked “(default)”. Reapply it if it is not.

Calibrate Your Display Using Built-In Tools

Windows includes a calibration wizard that adjusts gamma, brightness, contrast, and color balance by eye. Gamma controls how bright the mid-tones look. The wizard does not need a hardware colorimeter, which is a device that measures your screen’s color. A colorimeter is more accurate, but the wizard is a decent improvement over an uncalibrated screen.

📝Good to KnowLet the monitor warm up for about 30 minutes first, and avoid strong light falling on the screen. These steps run the wizard and save the result as a new color profile.
Advertisement
  1. Open the Start menu and type Calibrate display color. Press Enter, and the Display Color Calibration window opens.
  2. Read the introductory instructions and click Next. The wizard moves to the first adjustment screen.
  3. Reset your monitor to its factory default color settings. Use the buttons on the monitor or its on-screen menu if it has a reset option, then click Next.
  4. Adjust gamma, brightness, and contrast using the reference test images. Move the slider or monitor controls until the image matches the description on screen.
  5. Adjust the color balance sliders until the neutral gray bars look free of unwanted tints. Then click Next.
  6. Compare your new calibration with the old one. Use the Previous calibration and Current calibration buttons, and the screen switches between the two so you can judge the difference.
  7. Click Finish to save the custom profile. If you are not happy with the result, click Cancel instead to keep your old settings.

You should now have a new calibrated profile added to your display. Use the Color Management window to check it or switch back to another profile.

What to do next

With your display profile configured, the screen should now render accurate, consistent colors in apps that support color management. Apps without that support follow the system defaults you set earlier. Next, you could adjust your display refresh rate or set up a multi-monitor arrangement to suit your workspace.

Frequently asked questions

How to configure Windows 11 color profiles?

Open Color Management from the Start menu and select your monitor in the Device list. Check Use my settings for this device, click Add, and pick an ICC profile file. Then select it and click Set as Default Profile. Windows applies it to that screen right away.

How to set color profile of workstation?

Set the profile on the computer's monitor through Color Management. Open it from the Start menu, pick the display from the Device list, and check Use my settings for this device. Click Add to choose your ICC file, then press Set as Default Profile to apply it.

Where do I find the list of all display calibrated profiles on Windows 11?

Installed profiles are stored in the folder 📁C:\Windows\System32\spool\drivers\color. You can open that folder in File Explorer to browse them. You can also see them in the Add dialog, which opens from Color Management when you click Add on the Devices tab.

How to set profile in color management?

Open Color Management, then choose the monitor on the Devices tab. Check Use my settings for this device, select the profile in the list, and click Set as Default Profile. Click Close to finish. The profile stays active until you change it.

How do you load a color profile runtime with Windows 11?

Windows does not offer a separate runtime option in Color Management. It loads the default profile for each display automatically at sign-in and whenever the monitor reconnects. To switch profiles, assign a new default in Color Management, and Windows applies it right away.

What is color management in Windows?

Color management is how Windows keeps colors consistent across your screen, printer, and other devices. It uses ICC profiles, which are files that describe how each device shows or reproduces color. With correct profiles, a photo looks the same on your monitor as it does when printed.

Where is the Close button in Color Management in Windows 11?

Asked by a reader

The Close button is at the bottom of the Color Management window, not at the top. The profile buttons, including Set as Default Profile, sit below the profile list. If you can't see the bottom of the window, make it larger or drag its lower edge so the buttons show. Select your profile, click Set as Default Profile, confirm "(default)" appears, and then click Close.
