How to Enforce BitLocker Encryption on Removable Drives

What Is BitLocker and Why Use It?

BitLocker removable drive encryption is a built-in Windows security feature that scrambles data on USB drives and external hard disks so nobody can read your files without the correct password or recovery key. Using BitLocker stops private documents, photos, and work files from falling into the wrong hands if you lose a thumb drive or someone steals your external hardware.

BitLocker protects external, fixed drives, and operating system drives. Main Windows drives running BitLocker can unlock automatically at startup using a TPM (Trusted Module, a dedicated security chip that aids encryption).

Understanding Encryption Types

Enabling BitLocker for removable data drives prompts Windows to request a specific encryption type selection.

Full encryption locks down the entire drive.

Used space only encryption protects solely the sectors holding active data.

Why Enforce an Encryption Type?

The 'Enforce drive encryption type on removable data drives' policy setting governs how BitLocker behaves on external storage. Administrators use this control to enforce a standardized encryption method across an entire organization or workstation.

Method 1Using Group Policy Editor

Group Policy Editor (a tool for managing system rules) lets you enforce BitLocker removable drive encryption across your whole computer using a visual menu. This built-in Windows feature requires you to change a few specific settings so every USB drive plugged into the machine must be encrypted before anyone can write files to it.

Search for "Edit group policy" in the Start menu. Click on 'Local Group Policy Editor' to open the utility.

Step 2: Navigate to BitLocker Settings

Follow this path in the left panel:

• Computer Configuration
• Administrative Templates
• Windows Components
• BitLocker Drive Encryption
• Removable Data Drives

Step 3: Find the Encryption Policy

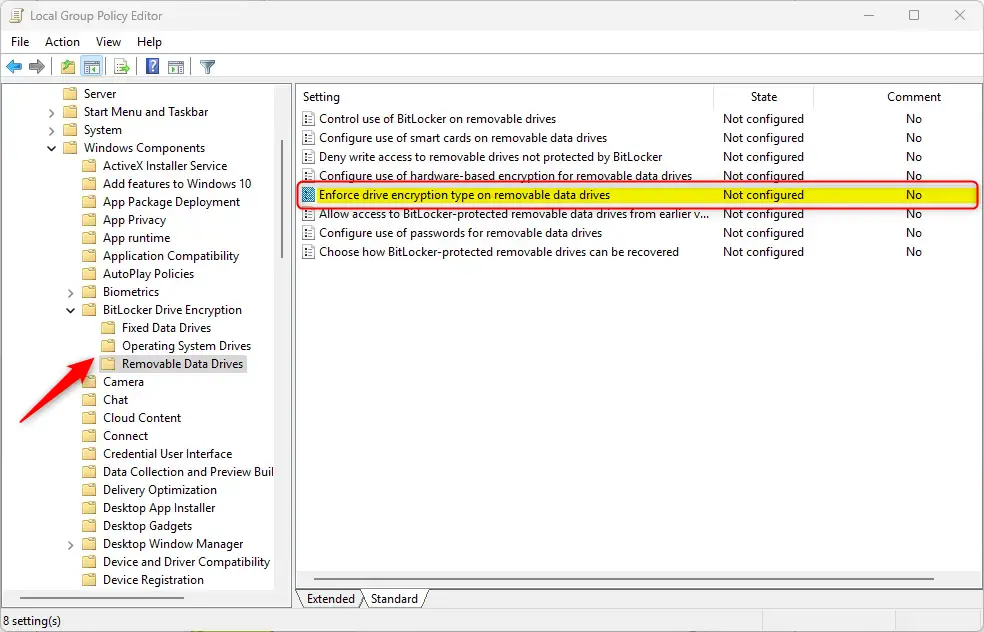

Locate the setting "Enforce drive encryption type on removable data drives" in the right panel of the Group Policy Editor. Double-click this setting to open its configuration window.

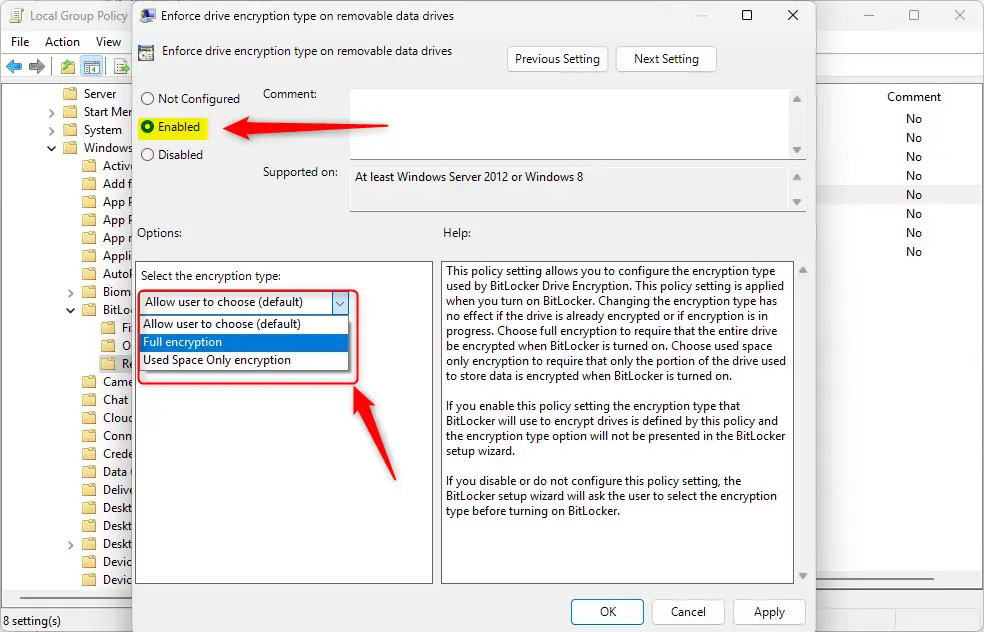

Step 4: Choose Your Encryption Type

A configuration window presents three choices:

• Not Configured (default) – Works like Disabled. BitLocker will ask users which encryption type to use.
• Enabled – BitLocker uses the type you choose below. Users won't see the option to pick a type in the wizard. Choose either "Full encryption" or "Use Space Only encryption."
• Disabled – BitLocker setup will keep asking users to pick the encryption type.

Step 5: Save and Restart

Click OK to save changes. A system reboot applies the new policy settings.

Method 2Using Registry Editor %%FLAG_ADMIN%%

Registry Editor (a database holding low-level Windows settings) provides an alternative way to enforce BitLocker removable drive encryption by writing direct rules into your system configuration. This approach works well when you cannot use the policy editor, though you need to be careful because incorrect registry changes can cause system problems.

Right-click the Windows Registry editor and select "Run as administrator."

Step 2: Navigate to the BitLocker Key

The Windows Registry, a central database for computer settings, resides at HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\System. Accessing this location allows management of BitLocker encryption policies for removable drives, ensuring external storage meets organizational security standards.

Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\FVE

Step 3: Find or Create the Encryption Type Setting

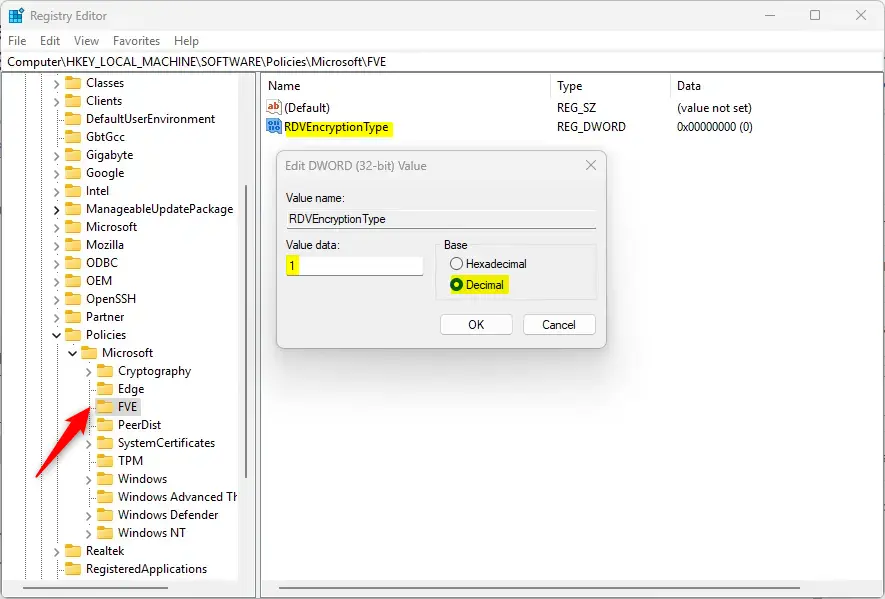

The 'RDVEncryptionType' setting appears in the right-hand pane. Double-click 'RDVEncryptionType' to open its properties window and select the encryption method for removable drives.

If the entry is missing, right-click an empty space and select 'New' > 'DWORD (32-bit) Value.' Name this new value 'RDVEncryptionType.'

Step 4: Set the Encryption Value

Enter one of these numerical values:

• 1 – Enforces full encryption on removable drives
• 2 – Enforces used space only encryption on removable drives

Step 5: Save and Restart

Click OK to save modifications. Restart the machine to enforce the changes.

How to Undo These Changes

Restoring user choice involves deleting the RDVEncryptionType item and restarting the computer.

Summary

BitLocker removable drive encryption keeps your sensitive files safe by forcing all external USB storage devices to lock down with a password. You can turn on this security requirement using either the Group Policy Editor or the Registry Editor, depending on which built-in Windows tool you feel more comfortable using.

• Group Policy Editor – Best for everyday users who prefer a visual interface
• Registry Editor – A direct way to change settings in Windows' database

Both methods support choosing full encryption or used space only configuration. Once applied, BitLocker enforces the selected rule automatically. Rebooting the machine finalizes these adjustments.
