How to Install KVM on Ubuntu Linux

|

|

This tutorial outlines how to install open-source virtualization solution KVM (Kernel-based Virtual Machine) on Ubuntu 20.04 or 18.04. The installation process entails verification of system compatibility, installing KVM packages, configuring network bridges for the virtual machines, and creating new virtual machines. Post-installation, users can manage virtual machines using the virt-manager GUI or CLI commands.

This brief tutorial shows students and new users how to install KVM on Ubuntu 20.04 | 18.04.

KVM (Kernel-based Virtual Machine) is an open-source complete virtualization solution for Linux systems, including Ubuntu. Like VirtualBox and VMware Workstation, KVM is a virtualization infrastructure for the Linux kernel that turns it into a hypervisor.

This brief tutorial shows students and new users how to install KVM kernel modules on the Ubuntu server to enable full virtualization.

If you can’t install VirtualBox or VMware Workstation virtualization solutions on Ubuntu, you can try KVM. After installing, use the KVM module to install and run multiple virtual machines (guest) on Linux servers.

These virtual machines can be managed via the virt-manager graphical user interface or virt-install & virsh CLI commands.

Check your System

Not all systems can install and run KVM modules. If you’re running a server that isn’t compatible, KVM can’t be used on it. To check, run the commands below to install a CPU checker tool:

sudo apt install cpu-checker
sudo kvm-ok

After installing the above commands, check the CPU compatibility with KVM. If KVM is compatible, you should get the message that KVM acceleration can be used.

KVM acceleration can be used

if KVM isn’t compatible with your system, you’ll get a message that reads

INFO: Your CPU does not support KVM extensions
KVM acceleration can NOT be used

The message above shows you can’t run KVM.

Install KVM Packages

If step 1 is good, run the commands below to install KVM packages to enable full virtualization functionality on Ubuntu via the Linux kernel.

sudo update
sudo apt install qemu qemu-kvm libvirt-bin  bridge-utils  virt-manager

After installing the KVM packages, run the commands below to start and enable it to automatically startup when the system boots.

sudo systemctl start libvirtd
sudo systemctl enable libvirtd

Configure Network Bridge for the Virtual Machine

KVM virtualization module requires a network bridge for its virtual guest machines. On Ubuntu 18.04 server, a new file /etc/netplan/50-cloud-init.yaml file is created for network configurations. Use this file to configure static IP; bridge and netplan utility will refer to this file.

Run the commands below to open the Ubuntu network config file to create a new network bridge.

sudo nano /etc/netplan/50-cloud-init.yaml

Then, save a new bridge section [highlighted] to the file.

network:
  ethernets:
    enp0s3:
      dhcp4: no
      dhcp6: no
  version 2

  bridges:
    br0:
      interfaces: [enp0s3]
      dhcp4: no
      dhcp6: no
      addresses: [172.168.0.10/24]
      gateway4: 172.168.0.1
      nameservers:
        addresses: [172.168.0.1]

Save the file and exit

Next, run the commands below to apply the changes.

sudo netplan apply
sudo netplan --debug  apply

Next, continue below to start creating your VMs.

Create New VMs

Now that the server is configured, open the KVM virtual machine manager and create a new virtual guest machine. First, connect to the server, then create a new machine by clicking New Virtual Machine.

Ubuntu KVM Install

Then, choose how to install the guest machine. You can use local ISO media or via network / PXE install.

KVM Ubuntu setup

Next, browse for the ISO file if you will be installing via ISO and select the file with the OS. In this post, we’re going to be installing the Ubuntu server.

KVM install on ubuntu

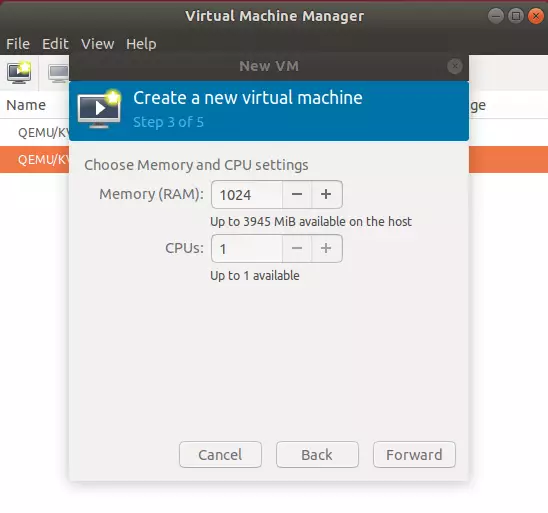

After selecting the OS file, continue to create a setup of a local disk, system memory, and other settings.

When you’re done, boot the VM to install Ubuntu

Conclusion:

This post showed you how to install KVM on Ubuntu 20.04 | 18.04. If you find any error above, please use the comment form below to report.

Thanks,

You may also like the post below:

Like this:



One response to “How to Install KVM on Ubuntu Linux”

  1. Lars Dirch Sørensen Avatar
    Lars Dirch Sørensen

    you might want to update this install guide regarding libvirt:
    https://askubuntu.com/questions/1089753/kvm-qemu-installation-issue-18-10

    Thanks for the guide!
